01
Replacement machine parts
Recreate worn, damaged, unavailable or disproportionately expensive components from an existing part, measurements or drawings.
DESIGN • PROTOTYPE • MANUFACTURE
Engineering solutions for the parts that are awkward, obsolete or overpriced.
A3D Techworks helps manufacturers and businesses replace difficult-to-source components, develop prototypes and produce low-volume engineering parts quickly.
CADReverse engineering & design
3D PRINTFunctional production parts
CNCMachined & composite parts
R&DComplete prototype systems
CAPABILITIES
Useful engineering, not just pretty prototypes.
From one broken component to a complete mechanism, the focus is on solving the actual problem and producing something that works in the real world.
02
Custom design & prototyping
CAD design, rapid iteration and physical testing for mechanisms, fixtures, guides, mounts and production improvements.
03
Low-volume manufacturing
Short runs of functional parts without the tooling cost and lead time associated with traditional mass production.
04
System development
Mechanical, electronic and software development when the solution needs more than a single component.
HOW IT WORKS
01Show us the problem
A photo, failed part, rough sketch or explanation is enough to start.
02Design the solution
Measure, reverse-engineer and model the part or mechanism in CAD.
03Prototype & test
Build quickly, test the important features and change what needs changing.
04Make the working part
Produce the finished component or low-volume batch and support future revisions.
SELECTED WORK
Designed on screen. Proved in hardware.
The strongest proof is seeing the design turn into a physical part. These projects show the process from CAD through to working hardware.
AUTOMATION • MECHANICAL DESIGN

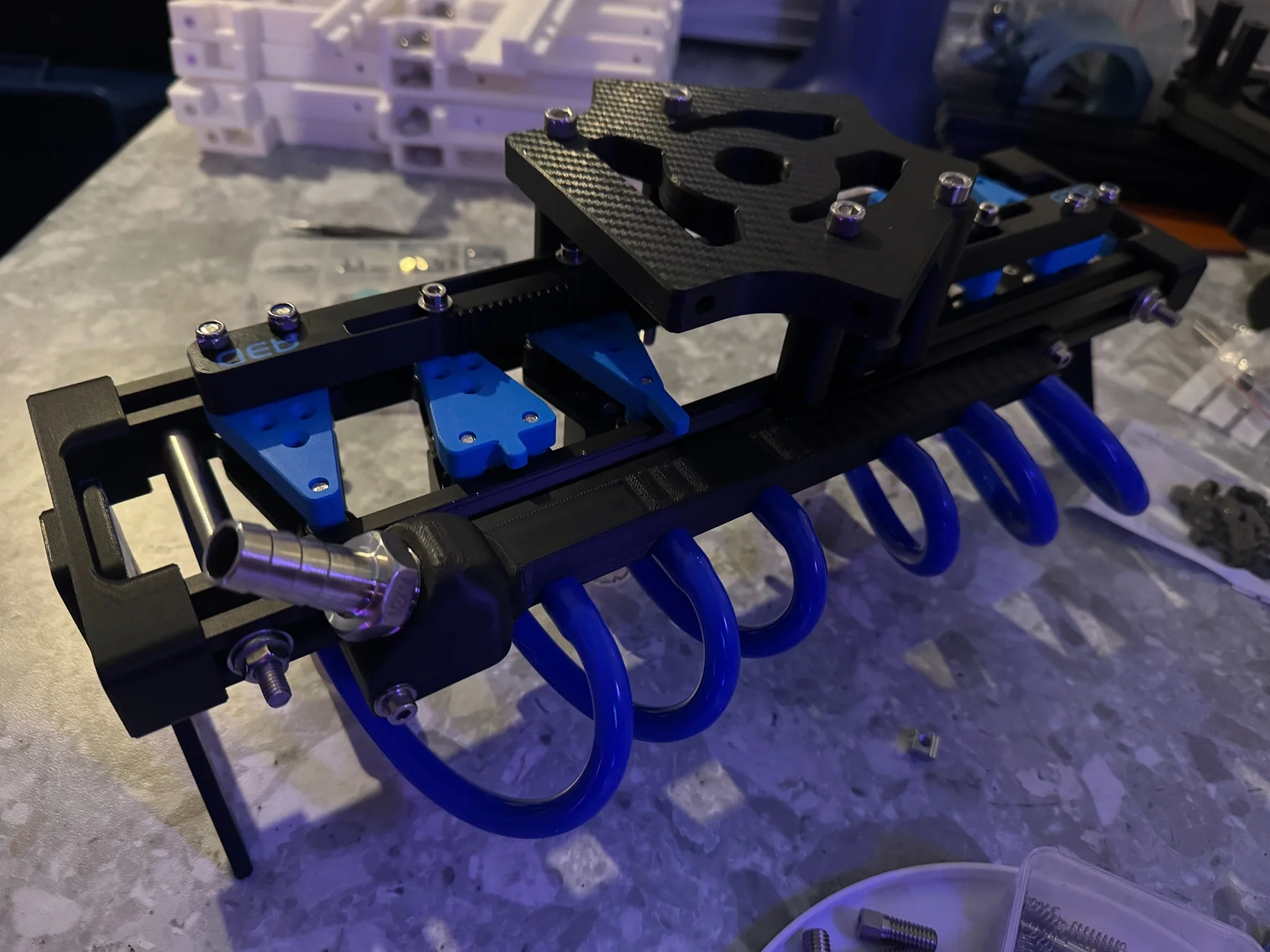

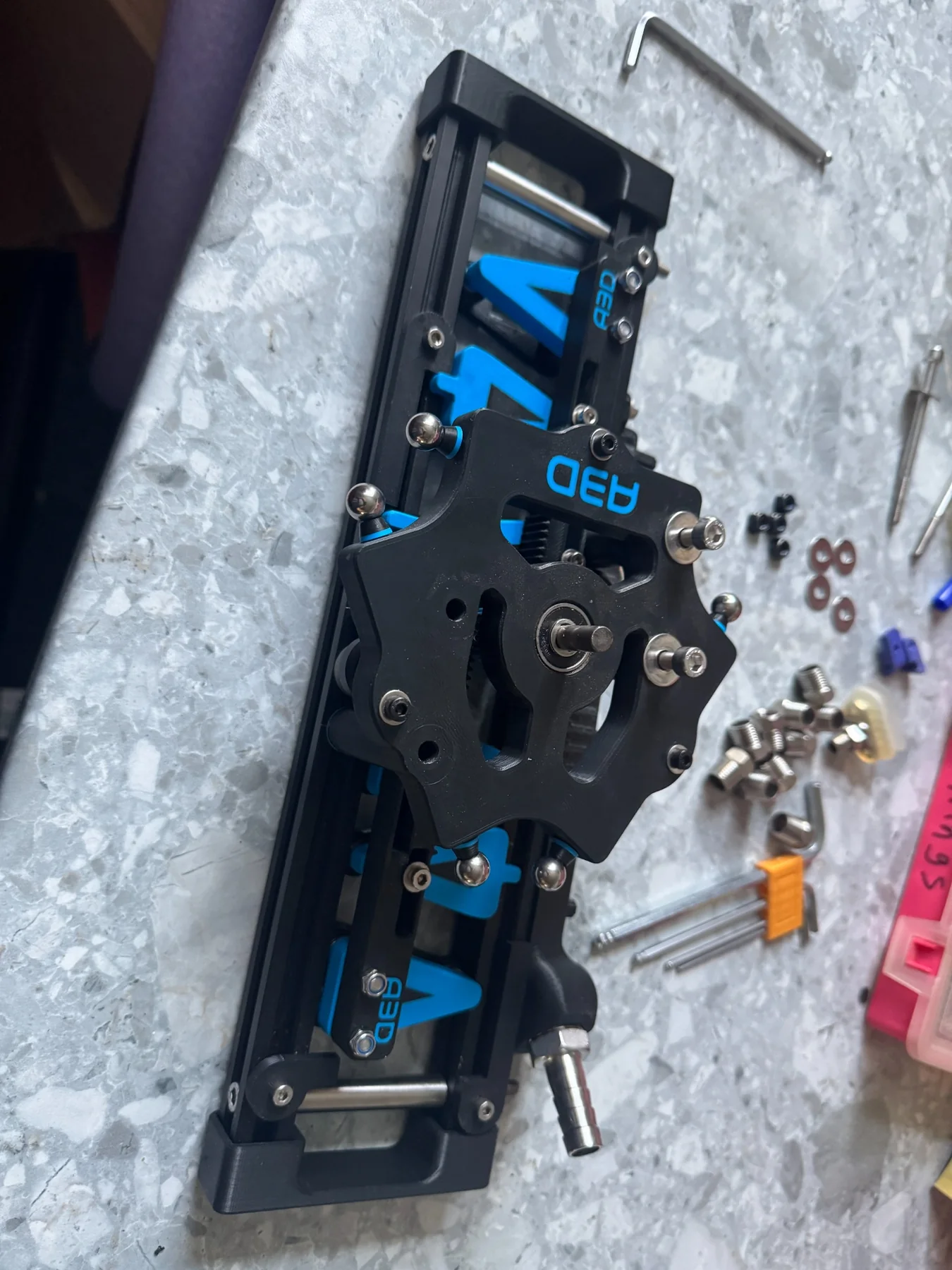

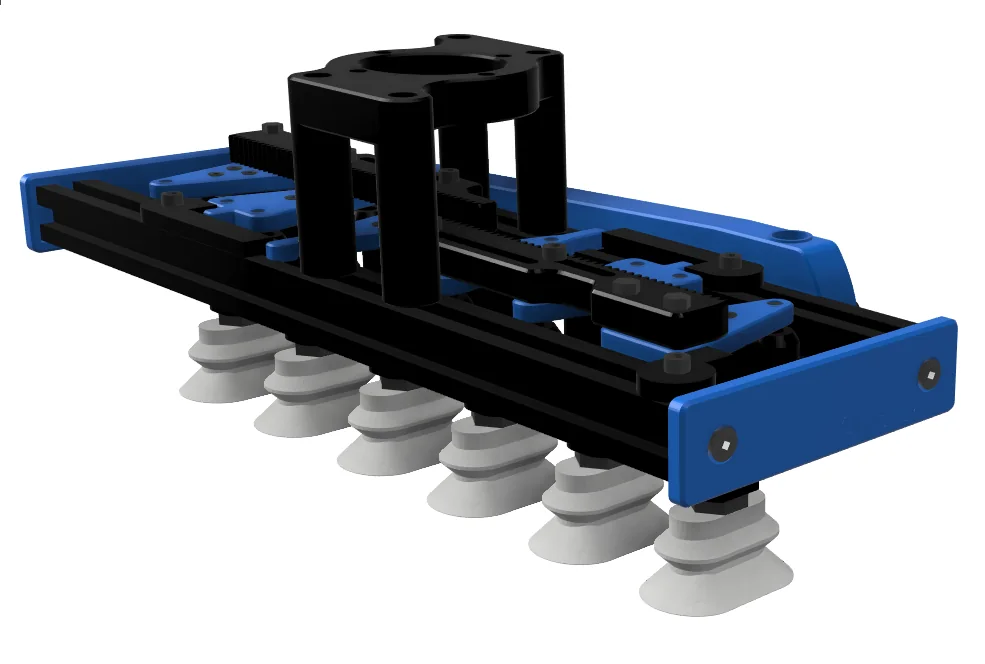

Pick-and-place head development
A complete redesign and prototype mechanism for production machinery, developed around serviceability, repeatability and practical manufacturing.
Mechanical redesignCADRapid prototypingFunctional testing
REVERSE ENGINEERING

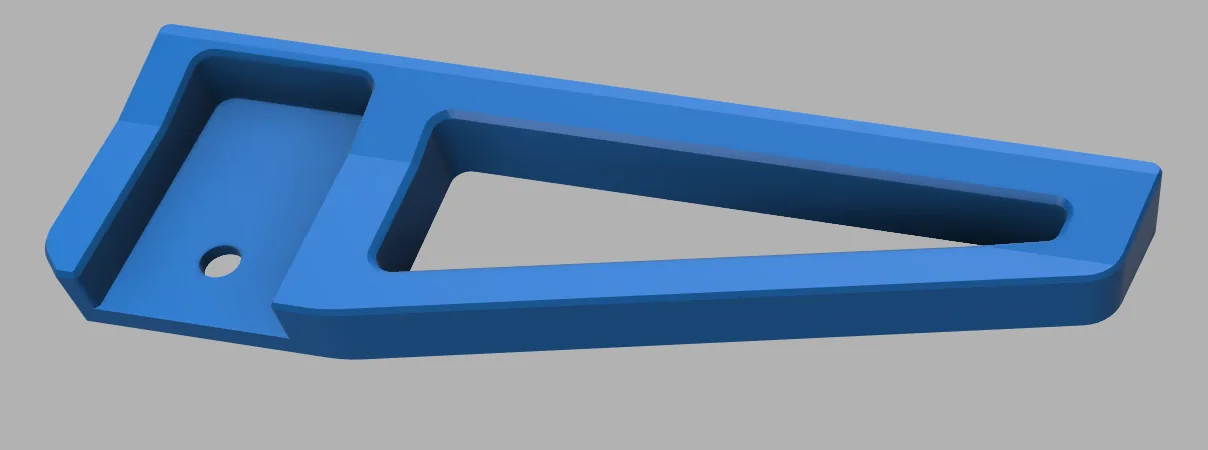

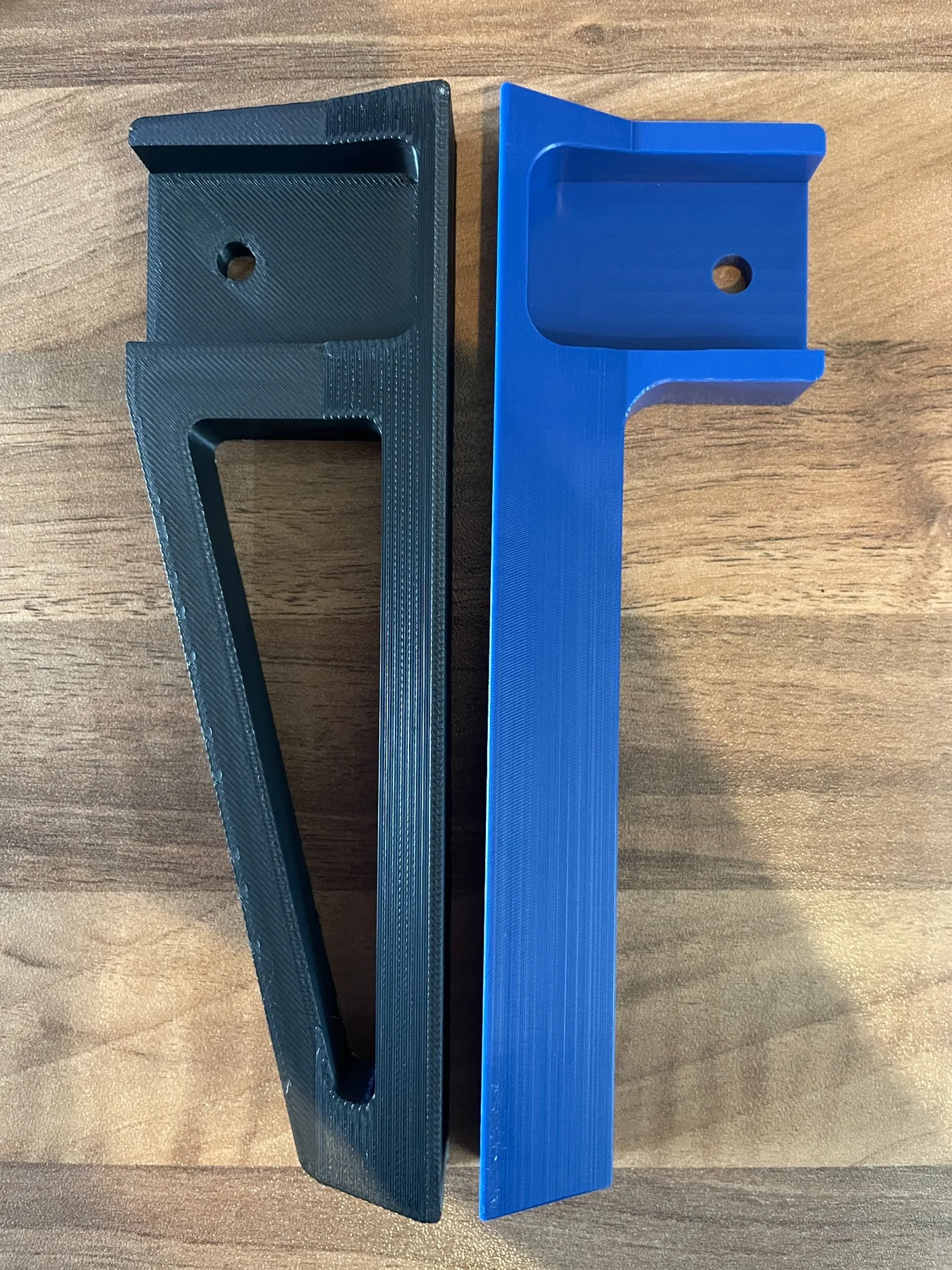

Replacement pusher components
Existing parts measured, redesigned and reproduced without requiring the original CAD data.
CNC • COMPOSITES

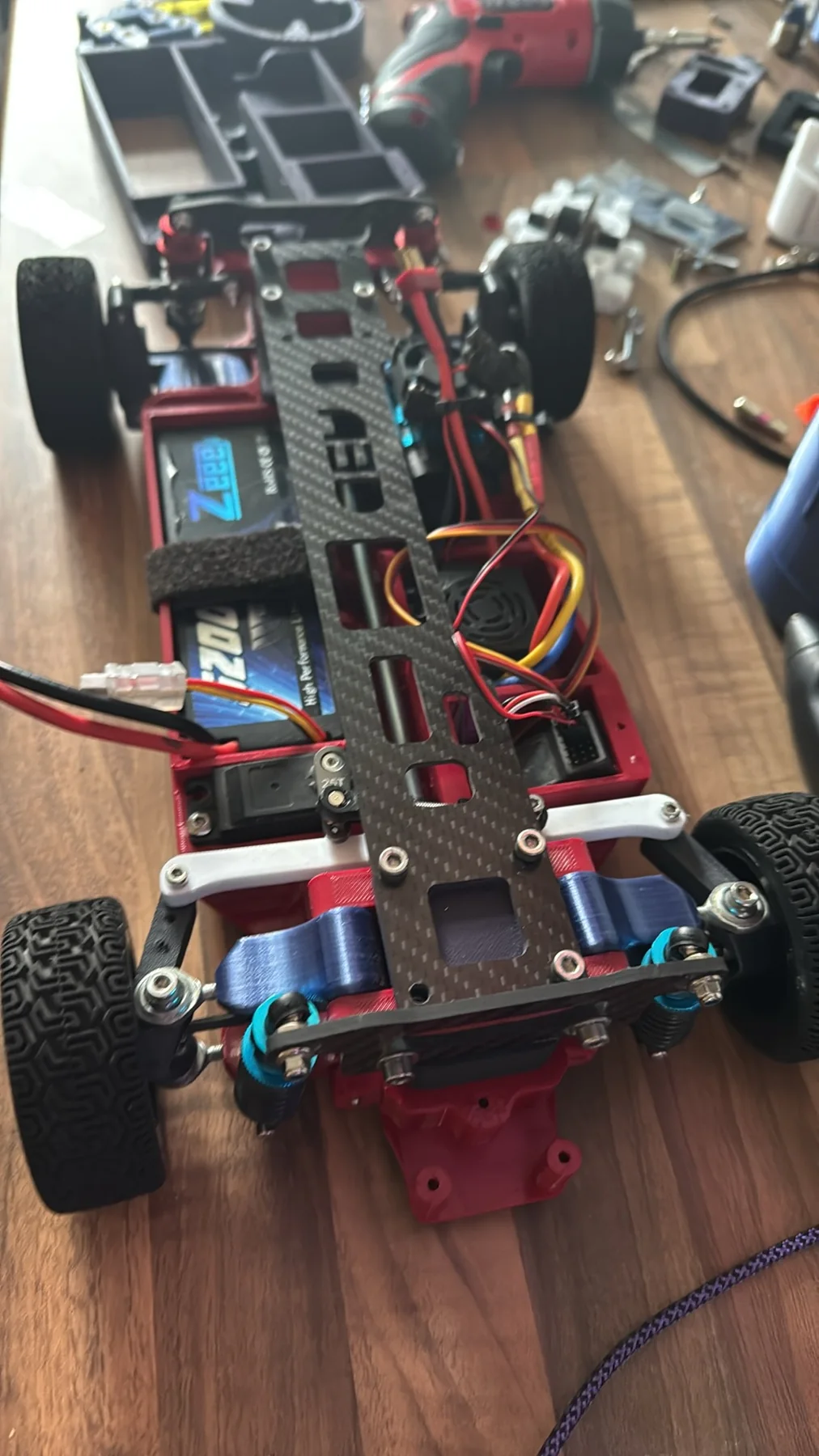

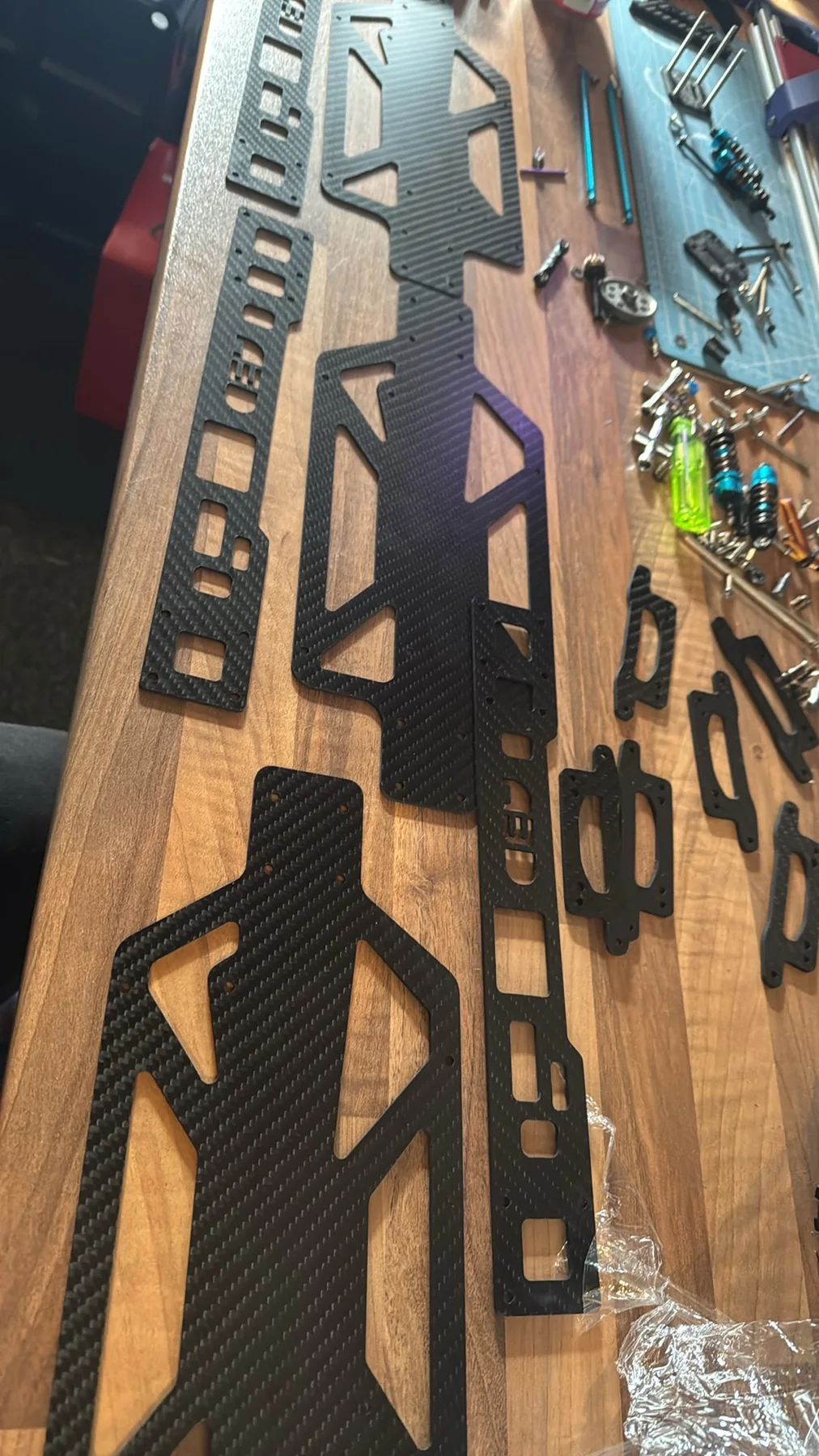

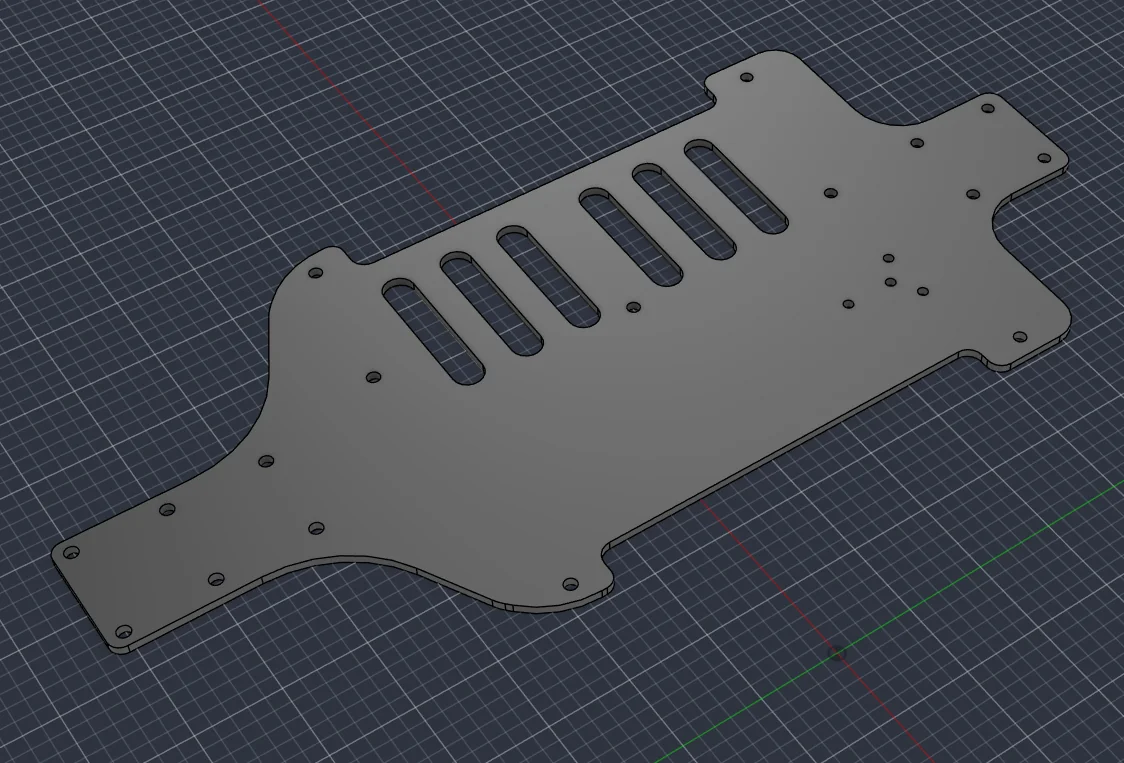

Carbon-fibre chassis parts
Designed around existing hardware, cut from carbon sheet and assembled into a working chassis.
PRODUCT DEVELOPMENT

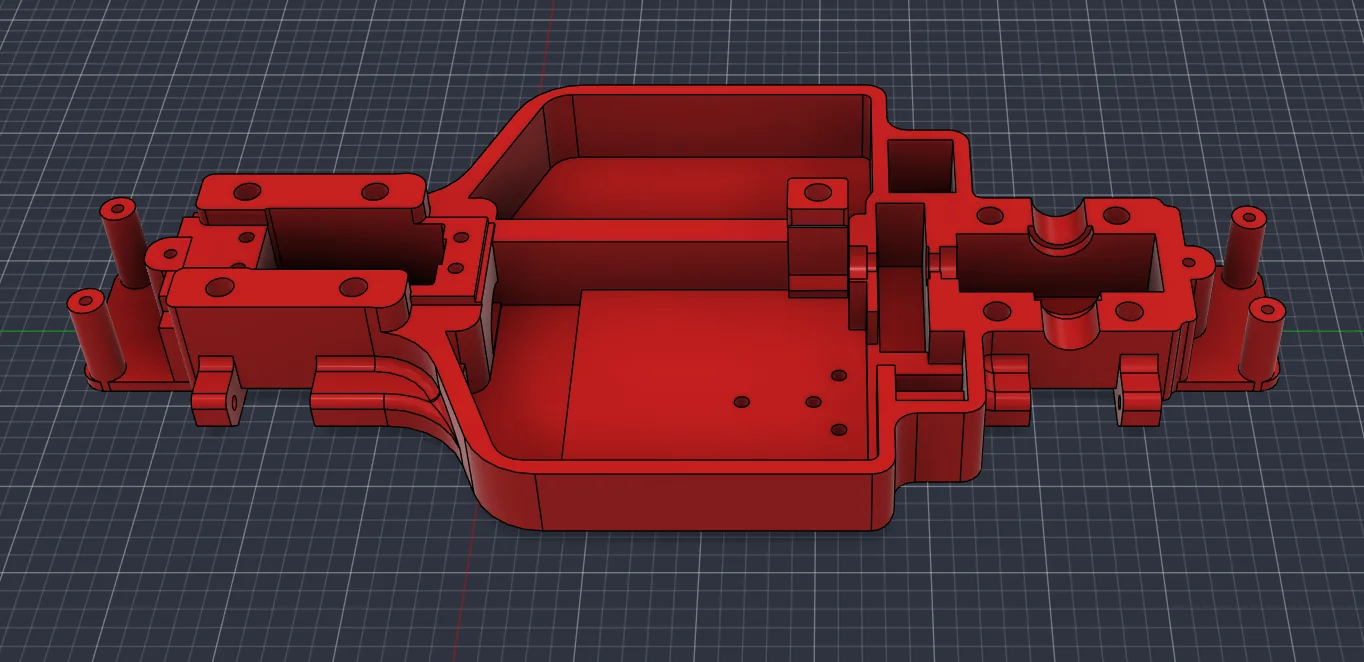

Custom RC platform
Mechanical packaging, suspension mounting, drivetrain layout and manufactured components developed as one system.

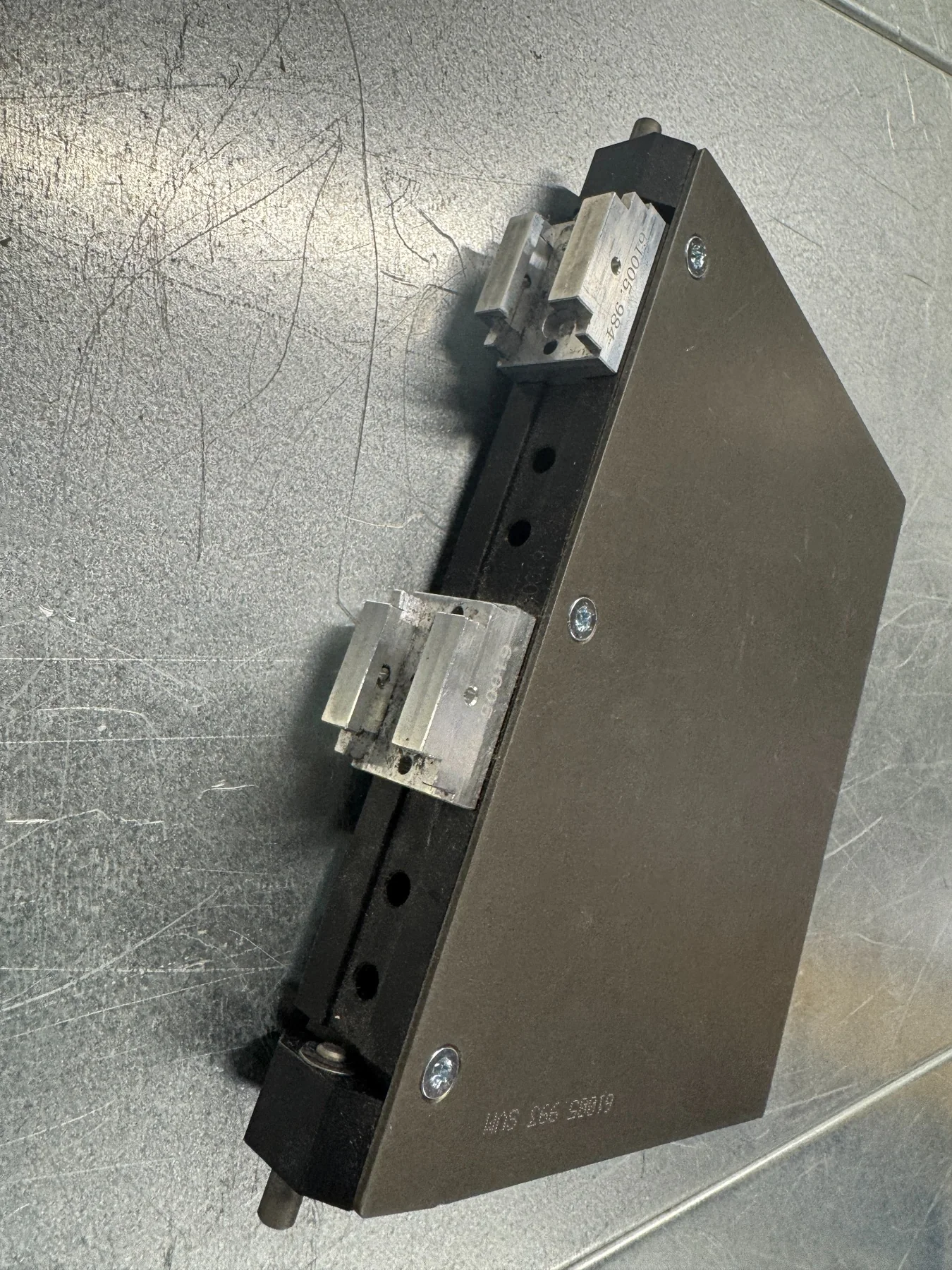

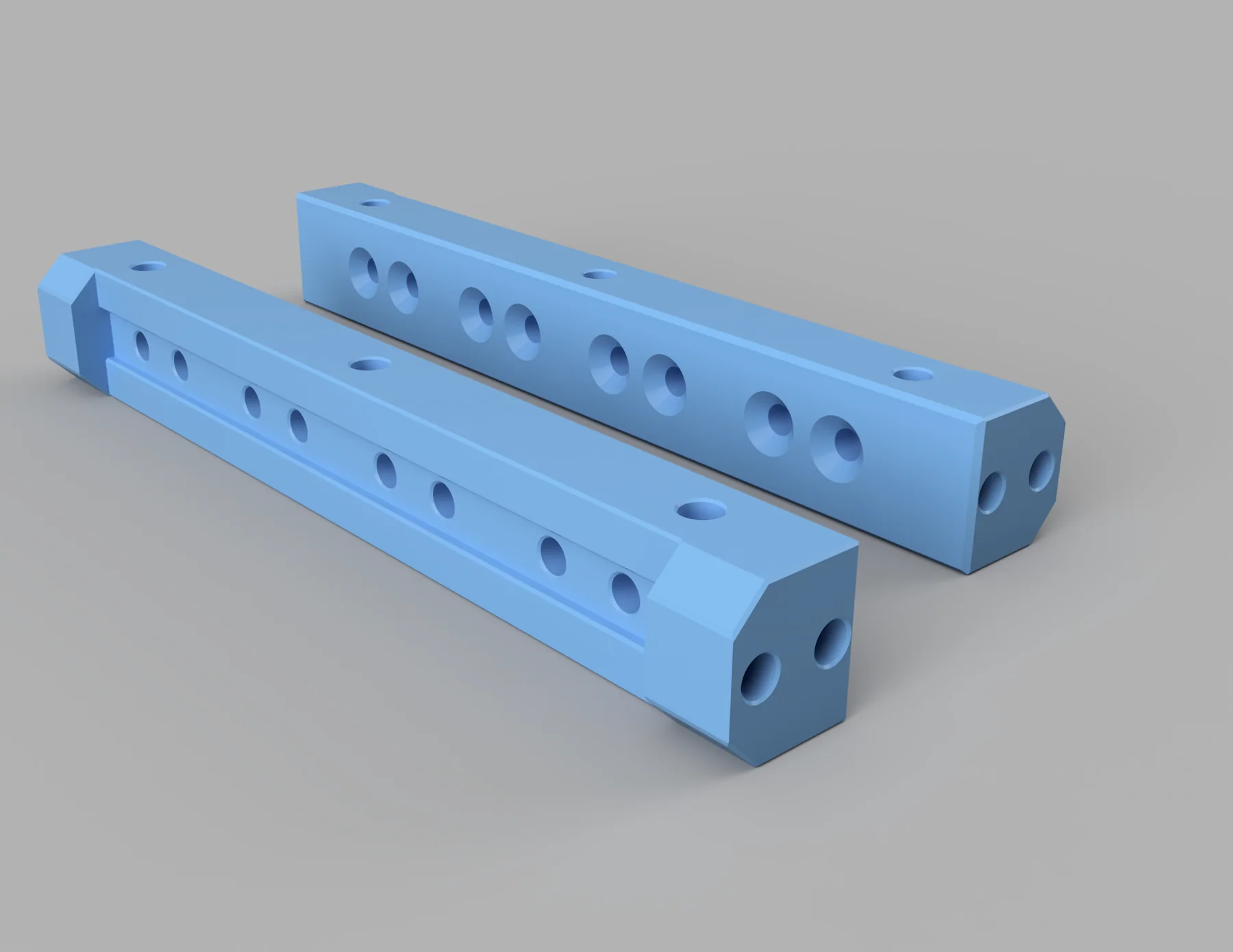

PRODUCTION MACHINERY
Machine attachment design
CAD development around an existing factory component, showing how new or replacement hardware can be designed to fit established production equipment.
IN-HOUSE R&D • SYSTEM DEVELOPMENT

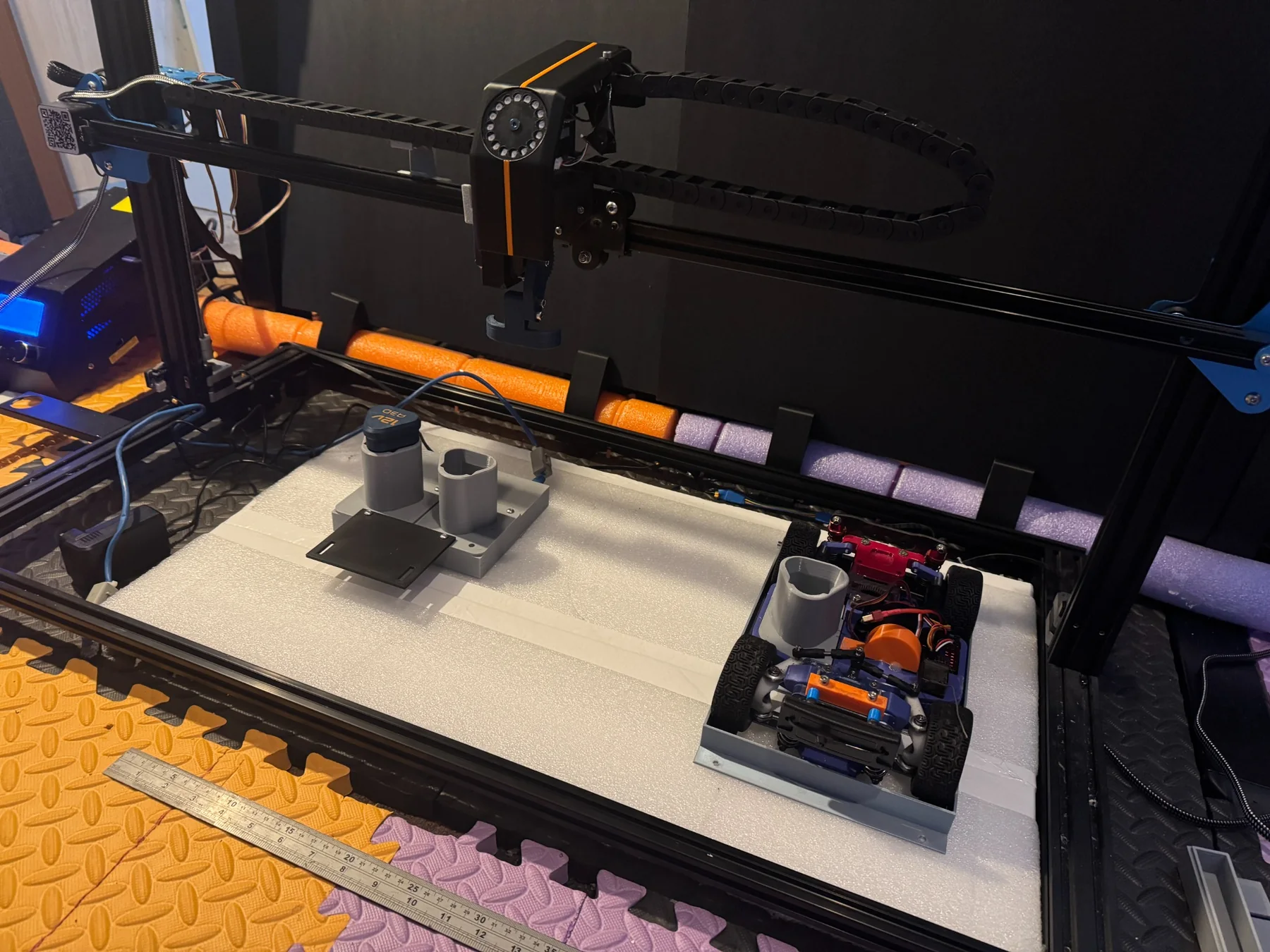

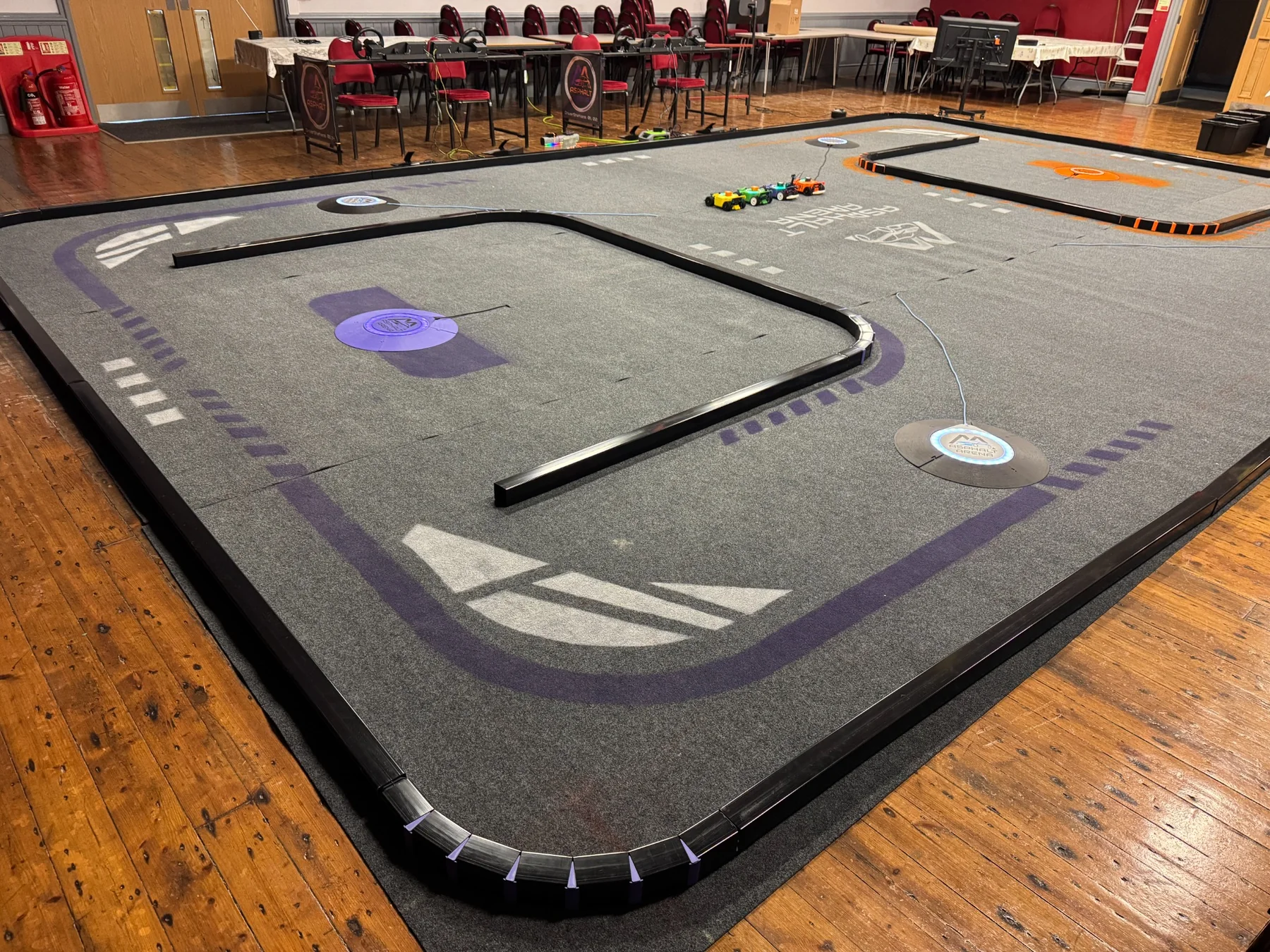

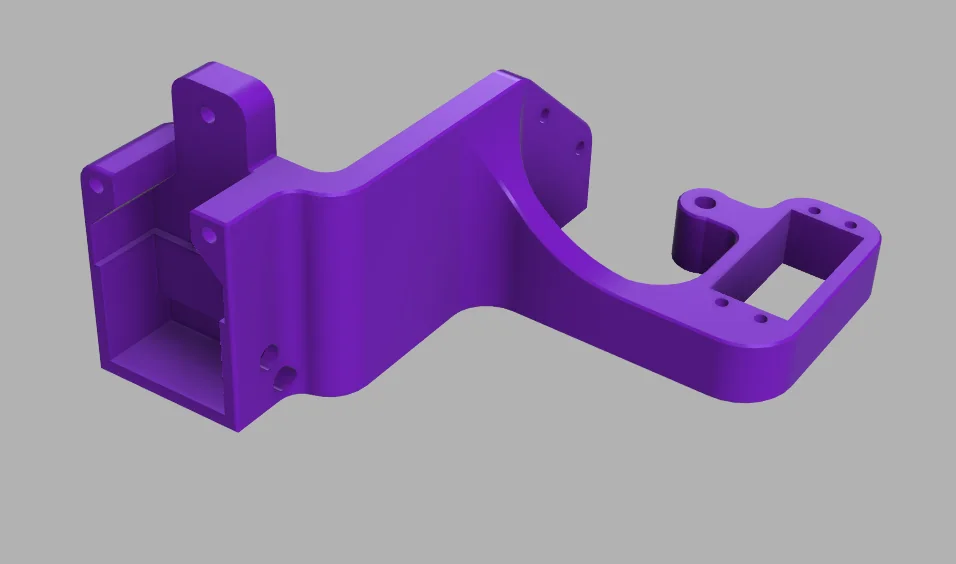

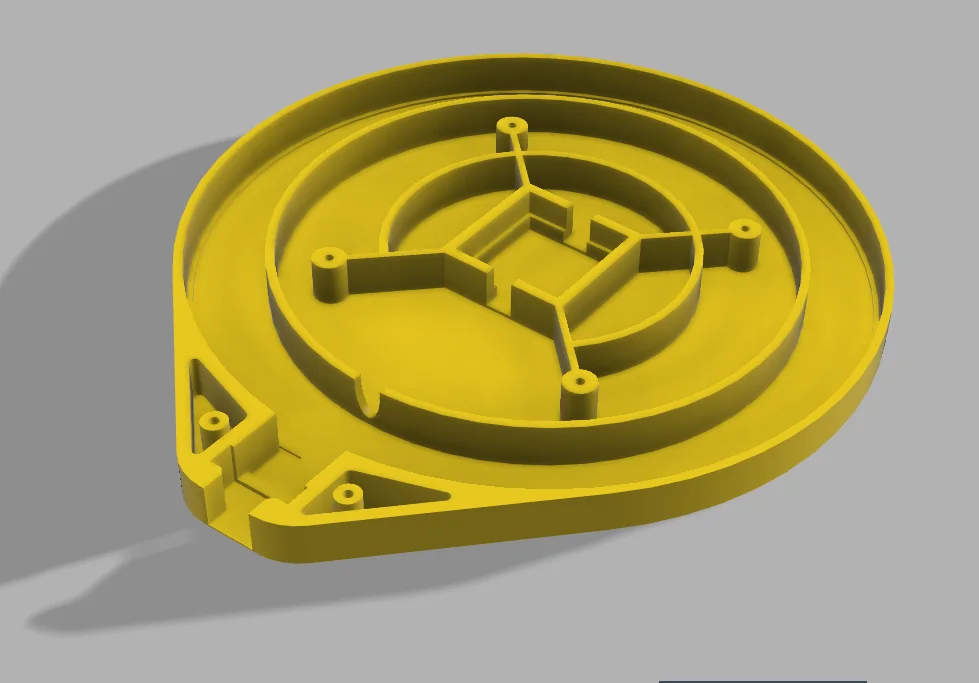

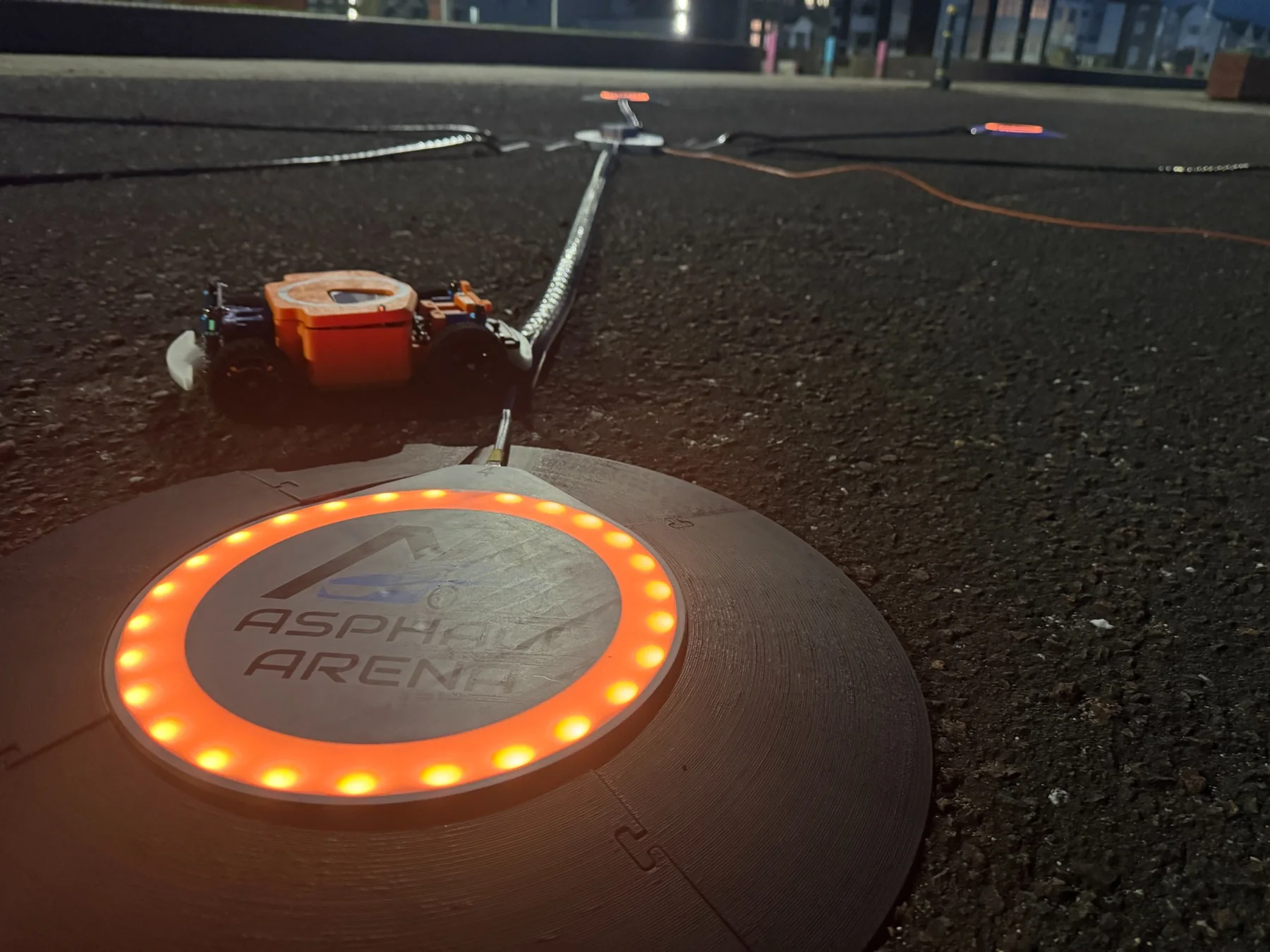

Asphalt Arena
An in-house development project combining mechanical design, custom RC hardware, illuminated game pads, embedded electronics, live software and automated pit-stop development.
MechanicalElectronicsSoftwareAutomation
A3D TECHWORKS
Small enough to move quickly. Technical enough to take on the weird stuff.
A3D Techworks is an independent engineering business specialising in practical, low-volume solutions. A project can begin with a broken part, a rough sketch, an existing mechanism or simply a problem that needs fixing.
The process is straightforward: understand what it needs to do, design the solution, build it, test it and improve it until it works.
HAVE A PART OR PROBLEM?
Send over a photo and tell us what it does.
You do not need a technical drawing. A photo, dimensions and a quick explanation are enough to start.
